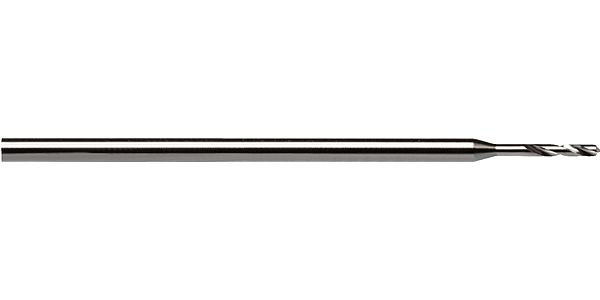

Micro-precision drills HSS-E-PM / Ø 0.105 mm / DIN 1899 / bright / Type: N
-
Connection code machine side: straight shank -
Tolerance on Ø: 0/-0.004 -
Standard: DIN 1899 -
Surface: bright -
Cutting direction: right-hand -
Type: N -
Point angle: 118 -
Tool material: HSS-E-PM -
Internal cooling: without
SKU
301 0.105
EAN
4031093085687
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Micro-precision drills HSS-E-PM / Ø 0.105 mm / DIN 1899 / bright / Type: N
Micro-precision drills HSS-E-PM / Ø 0.105 mm / DIN 1899 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: < Ø 0.15 mm Co-alloyed high speed steel • facet point grind • with re-inforced shank
Application: high-alloyed steels
Execution: < Ø 0.15 mm Co-alloyed high speed steel • facet point grind • with re-inforced shank
Application: high-alloyed steels
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Point grinding
- facet point grinding
- Connection code machine side
- straight shank
- Tolerance on Ø
- 0/-0.004
- Internal cooling
- without
- Norm
- DIN 1899
- Surface
- bright
- Discount group
- 134
- Type
- 301
- Cutting direction
- right-hand
- Type
- N
- Point angle
- 118
- Material
- HSS-E-PM
- Code no.
- 0.105
- Weight
- 0.001
- No of cutting edges
- 2
- Total length
- 25.000
- Groove length
- 0.500
- Usable length
- 0.400
- Shank Ø
- 1.000
- Nominal Ø mm
- 0.105
- Statistical goods number
- 82075060
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
