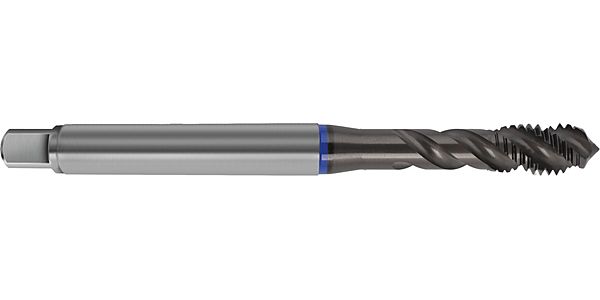

Taps M16 / 6HX / DIN 376 / HSS-E / TiAlN

  • Connection code machine side: straight shank
  • Standard: DIN 371/DIN 376
  • Surface: TiAlN
  • Cutting direction: right-hand
  • Type: VA R45
  • Tool material: HSS-E
  • Form: C
  • Coloured ring: blue ring
  • Tolerance field: 6HX
  • Hole type: blind hole
  • Groove: 45° right hand helix
  • Internal cooling: without
SKU
393 16.000
EAN
4049844098633
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M16 / 6HX / DIN 376 / HSS-E / TiAlN

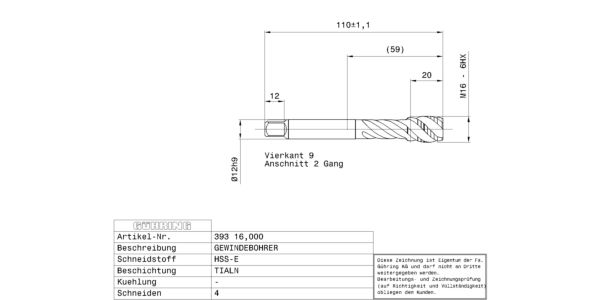

Machine taps for ISO metric threads  M16 / 6HX / 3xD / DIN 376 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 376
Surface
TiAlN
Discount group
103
Type
393
Cutting direction
right-hand
Type
VA R45
Material
HSS-E
Additional information
Internal threading
Form
C
Coloured ring
blue ring
Threads
M
Tolerance class thread
6HX
Hole type
blind hole
Groove
45° right hand helix
Chamfer lead length
2-3
Code no.
16.000
Weight
0.090
No of cutting edges
4
Total length
110.000
Thread length
20.000
Groove length
50.000
Usable length
54.000
Norm 2
DIN 2184-1
Wrench opening 1
9.000
Neck Ø
11.800
Core hole Ø
14.00
Shank Ø
12.000
Nominal dimension thread
M16
Pitch
2.000
External Ø
16.090
Reach length
59.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
    Machine taps for ISO metric threads / Catalogue-No.: 393
