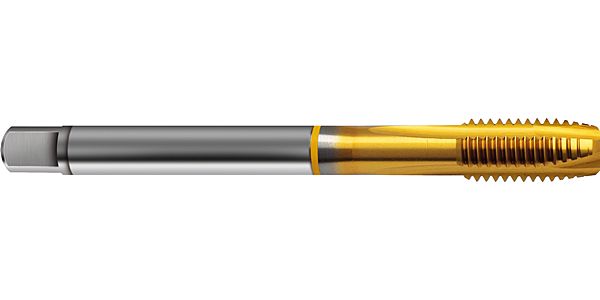

Taps M24 / ISO2/6H / DIN 376 / HSS-E / TiN

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Standard: DIN 376
    Standard: DIN 376
    Standard: DIN 376
  • Surface: TiN
    Surface: TiN
    Surface: TiN
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: N
    Type: N
    Type: N
  • Tool material: HSS-E
    Tool material: HSS-E
    Tool material: HSS-E
  • Form: B
    Form: B
    Form: B
  • Coloured ring: yellow ring
    Coloured ring: yellow ring
    Coloured ring: yellow ring
  • Tolerance field: ISO2/6H
    Tolerance field: ISO2/6H
    Tolerance field: ISO2/6H
  • Hole type: through hole
    Hole type: through hole
    Hole type: through hole
  • Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
    Groove: straight-fluted cutting edges
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
SKU
915 24.000
EAN
4031093265560
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Taps M24 / ISO2/6H / DIN 376 / HSS-E / TiN
Machine taps for ISO metric threads  M24 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E / TiN / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²
Connection code machine side
straight shank
Internal cooling
without
Norm
DIN 376
Surface
TiN
Discount group
103
Type
915
Cutting direction
right-hand
Type
N
Material
HSS-E
Additional information
Internal threading
Form
B
Coloured ring
yellow ring
Threads
M
Tolerance class thread
ISO2/6H
Hole type
through hole
Groove
straight-fluted cutting edges
Chamfer lead length
3.5-5,5
Code no.
24.000
Weight
0.294
No of cutting edges
4
Total length
160.000
Thread length
36.000
Groove length
69.000
Usable length
73.000
Norm 2
DIN 2184-1
Wrench opening 1
14.500
Neck Ø
17.800
Core hole Ø
21.00
Shank Ø
18.000
Nominal dimension thread
M24
Pitch
3.000
External Ø
24.110
Reach length
81.000
Statistical goods number
82074010
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
    Machine taps for ISO metric threads / Catalogue-No.: 915
