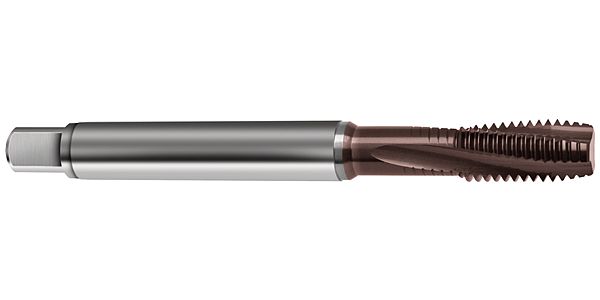

Taps M3 x 0,35 / 6HX / DIN 371 / HSS-E-PM / TiAlN
-
Connection code machine side: straight shank -
Standard: DIN 371 -
Surface: TiAlN -
Cutting direction: right-hand -
Type: Ni R10 -
Tool material: HSS-E-PM -
Form: C -
Tolerance field: 6HX -
Hole type: blind hole -
Groove: 10° right hand helix -
Internal cooling: without
SKU
2921 3.002
EAN
4031093631686
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Taps M3 x 0,35 / 6HX / DIN 371 / HSS-E-PM / TiAlN
Machine taps for ISO metric fine threads M3 x 0,35 / 6HX / 2xD / DIN 371 / DIN 2184-1 / HSS-E-PM / TiAlN / Type: Ni R10 / Form: C / blind hole / Cutting direction: right-hand /
Application: S = Ni
Application: S = Ni
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 371
- Surface
- TiAlN
- Discount group
- 103
- Type
- 2921
- Cutting direction
- right-hand
- Type
- Ni R10
- Material
- HSS-E-PM
- Additional information
- Internal threading
- Form
- C
- Threads
- MF
- Tolerance class thread
- 6HX
- Hole type
- blind hole
- Groove
- 10° right hand helix
- Chamfer lead length
- 2-3
- Code no.
- 3.002
- Weight
- 0.006
- No of cutting edges
- 3
- Total length
- 56.000
- Thread length
- 6.000
- Groove length
- 14.000
- Usable length
- 18.000
- Norm 2
- DIN 2184-1
- Wrench opening 1
- 2.700
- Neck Ø
- 2.300
- Core hole Ø
- 2.65
- Shank Ø
- 3.500
- Nominal dimension thread
- M3 x 0,35
- Pitch
- 0.350
- External Ø
- 3.040
- Reach length
- 37.000
- Statistical goods number
- 82074010
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
