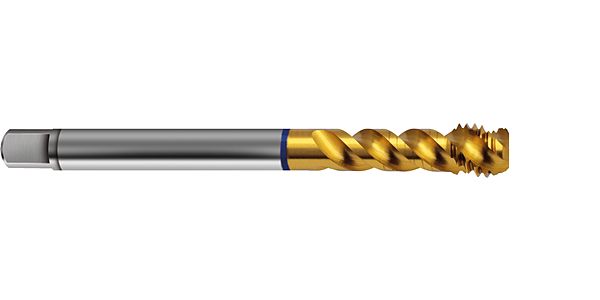

Taps G3/8 / DIN 5156 / HSS-E-PM / TiN
-
Connection code machine side: straight shank -
Standard: DIN 5156 -
Surface: TiN -
Cutting direction: right-hand -
Type: VA R50 -
Tool material: HSS-E-PM -
Form: C -
Coloured ring: blue ring -
Hole type: blind hole -
Groove: 50° right hand helix -
Internal cooling: without
SKU
4159 16.662
EAN
4049844069411
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Taps G3/8 / DIN 5156 / HSS-E-PM / TiN
Machine taps f. BSP-threads G3/8 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E-PM / TiN / Type: VA R50 / Form: C / blind hole / Cutting direction: right-hand /
Execution: Synchronous tap /
Application: P ≤ 1000 N/mm²
Execution: Synchronous tap /
Application: P ≤ 1000 N/mm²
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- straight shank
- Internal cooling
- without
- Norm
- DIN 5156
- Surface
- TiN
- Discount group
- 103
- Type
- 4159
- Cutting direction
- right-hand
- Type
- VA R50
- Material
- HSS-E-PM
- Additional information
- Internal threading
- Form
- C
- Coloured ring
- blue ring
- Threads
- BSP
- Hole type
- blind hole
- Groove
- 50° right hand helix
- Chamfer lead length
- 2-3
- Code no.
- 16.662
- Weight
- 0.084
- No of cutting edges
- 4
- Total length
- 100.000
- Thread length
- 6.700
- Groove length
- 40.000
- Usable length
- 44.000
- Norm 2
- DIN 2184-1
- Wrench opening 1
- 9.000
- Neck Ø
- 11.800
- Core hole Ø
- 15.25
- Shank Ø
- 12.000
- Nominal dimension thread
- G3/8
- Pitch
- 1.337
- External Ø
- 16.740
- Pitch thread/inch
- 19.000
- Reach length
- 49.000
- Body Ø
- 12.000
- Statistical goods number
- 82074010
