Main image
Click to view image in fullscreen
![]()

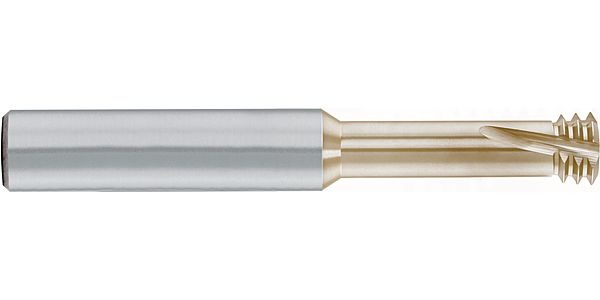

Micro-thread milling cutters UNC No8-32 UNC No 8 / Company std. / Solid carbide
-
Connection code machine side: DIN 6535-HA -
Standard: Company std. -
Surface: Sirius -
Cutting direction: right-hand -
Type: MTM3 SP -
Tool material: Solid carbide -
Hole type: through-, blind hole -
(Variety): 55 -
Internal cooling: without
SKU
4223 4.166
EAN
4049844157804
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Micro-thread milling cutters UNC No8-32 UNC No 8 / Company std. / Solid carbide
Micro thread milling cutters for UNC/UNF threads UNC No8-32 UNC No 8 / 3xD / Company std. / Solid carbide / Sirius / Type: MTM3 SP / through-, blind hole / Cutting direction: right-hand /
Application: H = 55 HRC
Application: H = 55 HRC
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Connection code machine side
- DIN 6535-HA
- Internal cooling
- without
- Norm
- Company std.
- Surface
- Sirius
- Discount group
- 108
- Type
- 4223
- Cutting direction
- right-hand
- Type
- MTM3 SP
- Material
- Solid carbide
- Additional information
- Internal threading
- Threads
- UN
- Hole type
- through-, blind hole
- (Variety)
- 55
- Code no.
- 4.166
- Range
- UNC No 8
- Weight
- 0.021
- No of cutting edges
- 4
- Total length
- 58.000
- Thread length
- 2.400
- Groove length
- 6.000
- Usable length
- 13.000
- Neck Ø
- 2.250
- Core hole Ø
- 3.50
- Shank Ø
- 6.000
- Nominal dimension thread
- UNC No8-32
- Pitch
- 0.794
- External Ø
- 3.200
- Shank length
- 41.800
- Pitch thread/inch
- 32.000
- Holder, machine side
- ~DIN 6535-HA
- Reach length
- 22.000
- Statistical goods number
- 82074010
- Radiuskompensation
- 1.570
Alert
Error when calculating the cutting values
Use case
Dimensions
mm
mm
mm
mm
%
mm
Material
All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
