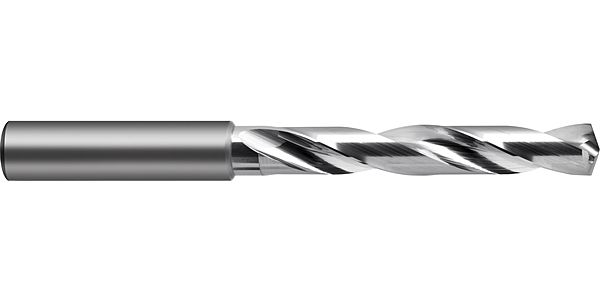

Ratio drills with internal cooling / Ø 14.700 mm / DIN 6537L / Type: RT 100 AL

  • Connection code machine side: DIN 6535-HA
    Connection code machine side: DIN 6535-HA
    Connection code machine side: DIN 6535-HA
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: m7
    Tolerance on Ø: m7
    Tolerance on Ø: m7
  • Internal cooling: with
    Internal cooling: with
    Internal cooling: with
  • Standard: DIN 6537L
    Standard: DIN 6537L
    Standard: DIN 6537L
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: RT 100 AL
    Type: RT 100 AL
    Type: RT 100 AL
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
5768 14.700
EAN
4049844294691
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Ratio drills with internal cooling / Ø 14.700 mm / DIN 6537L / Type: RT 100 AL
Ratio drills with coolant ducts Solid carbide / Ø 14.700 mm m7 / 5xD / DIN 6537L / Surface: bright / Cutting direction: right-hand / relieved cone 140°
Execution: Web thinning ≥ Ø 3.000 mm • relieved cone • main cutting edge is slightly concave • optimised cutting edge geometry • sharp cutting characteristics • polished functional surfaces for the prevention of built-up edges
 Application: aluminium and Al alloys • Al materials with high Si-content
Point grinding
relieved cone
Connection code machine side
DIN 6535-HA
Ø-Thinning
3.000
Nominal Ø tolerance field
m7
Internal cooling
with
Norm
DIN 6537L
Surface
bright
Discount group
155
Type
5768
Cutting direction
right-hand
Type
RT 100 Al
Point angle
140
Material
Solid carbide
Code no.
14.700
Weight
0.245
No of cutting edges
2
Total length
133.000
Groove length
83.000
Usable length
63.000
Shank Ø
16.000
Shank length
48.000
Nominal Ø mm
14.700
Statistical goods number
82075050
Dimensions
mm
Material
search
information-circle All values given are approximate values. The actually accomplishable cutting-speeds and feed-rates depend on the particular processing conditions. We recommend according cutting tests.
    Ratio drills with coolant ducts / Catalogue-No.: 5768
