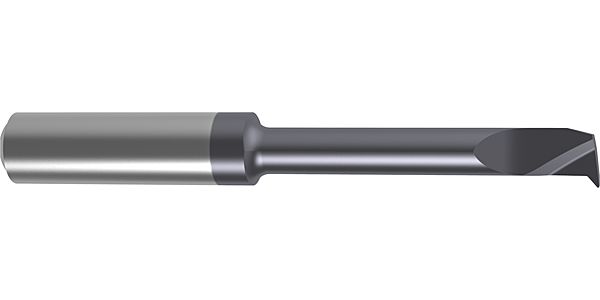

Cutting insert GT108.4767.020.37.70.L / left-hand / Solid carbide / Company std.

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: TiAlN-nanoA
    Surface: TiAlN-nanoA
    Surface: TiAlN-nanoA
  • Cutting direction: left-hand
    Cutting direction: left-hand
    Cutting direction: left-hand
  • Type: GT108
    Type: GT108
    Type: GT108
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
  • Picto turning (Article No.): SES_AUSDR_W_23_8
    Picto turning (Article No.): SES_AUSDR_W_23_8
    Picto turning (Article No.): SES_AUSDR_W_23_8
SKU
27105 8.360
EAN
4049844308794
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Cutting insert GT108.4767.020.37.70.L / left-hand / Solid carbide / Company std.
Cutting insert for boring out and profiling GT108.4767.020.37.70.L / Cutting direction: left-hand / Solid carbide / TiAlN-nanoA / Company std. / Execution: for tool holders type GB108/GH108 / Application: radial free 47° • tmax. 0.8 mm
Connection code machine side
straight shank
Norm
Company std.
Surface
TiAlN-nanoA
Discount group
210
Type
27105
Cutting direction
left-hand
Type
GT108
Material
Solid carbide
Code no.
8.360
Weight
0.033
No of cutting edges
1
Total length
62.000
Groove length
1.700
Usable length
37.000
Shank Ø
8.000
Pilot hole Ø work piece
7.0
Radius
0.200
Functional width
3.950
Max. depth grooves
0.800
Setting angle 1
47.000
Setting angle 2
8.000
Statistical goods number
82078011
    Cutting insert for boring out and profiling / Catalogue-No.: 27105
