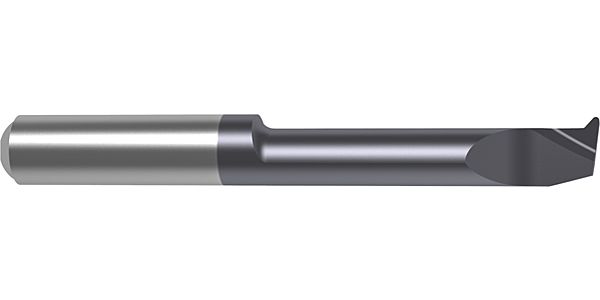

Cutting insert GT108.4777.010.37.80.R / right-hand / Solid carbide

  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: TiAlN-nanoA
    Surface: TiAlN-nanoA
    Surface: TiAlN-nanoA
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: GT108
    Type: GT108
    Type: GT108
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
  • Picto turning (Article No.): SES_AUSDR_W_47_8
    Picto turning (Article No.): SES_AUSDR_W_47_8
    Picto turning (Article No.): SES_AUSDR_W_47_8
SKU
27204 8.033
EAN
4049844305427
To see prices, please log in. New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Cutting insert GT108.4777.010.37.80.R / right-hand / Solid carbide
Cutting insert for boring out and profiling GT108.4777.010.37.80.R / Cutting direction: right-hand / Solid carbide / TiAlN-nanoA / Company std. / Execution: for tool holders type GB108/GH108 / Application: radial free 47° • tmax. 1 mm
Connection code machine side
straight shank
Norm
Company std.
Surface
TiAlN-nanoA
Discount group
210
Type
27204
Cutting direction
right-hand
Type
GT108
Material
Solid carbide
Code no.
8.033
Weight
0.037
No of cutting edges
1
Total length
62.000
Groove length
2.000
Usable length
37.000
Shank Ø
8.000
Pilot hole Ø work piece
8.0
Radius
0.100
Functional width
3.700
Max. depth grooves
1.000
Setting angle 1
47.000
Setting angle 2
8.000
Statistical goods number
82078011
    Cutting insert for boring out and profiling / Catalogue-No.: 27204
